Profiles
Two profile systems. Designed for different applications.
Our two steel systems share the same refined appearance but are engineered for different applications. Choose based on location, exposure and the level of weather protection required.
Slimline Series
Maximum glass. Minimal Steel.
Technical Details
Best suited to: Internal and sheltered external applications
Jamb size: 20mm × 50mm
Door leaf size: 30mm × 40mm
Head profile options: Square or Sloped
Glazing shown: 6mm glass
Performance Series
Technical Details
Best suited to: Exposed external applications
Jamb size: 25mm × 60mm
Door leaf size: 34mm × 46mm
Head profile options: Square or Sloped
Glazing shown: 6mm glass
Improved Sealing for exposed external applications.
The Detail is in the profile

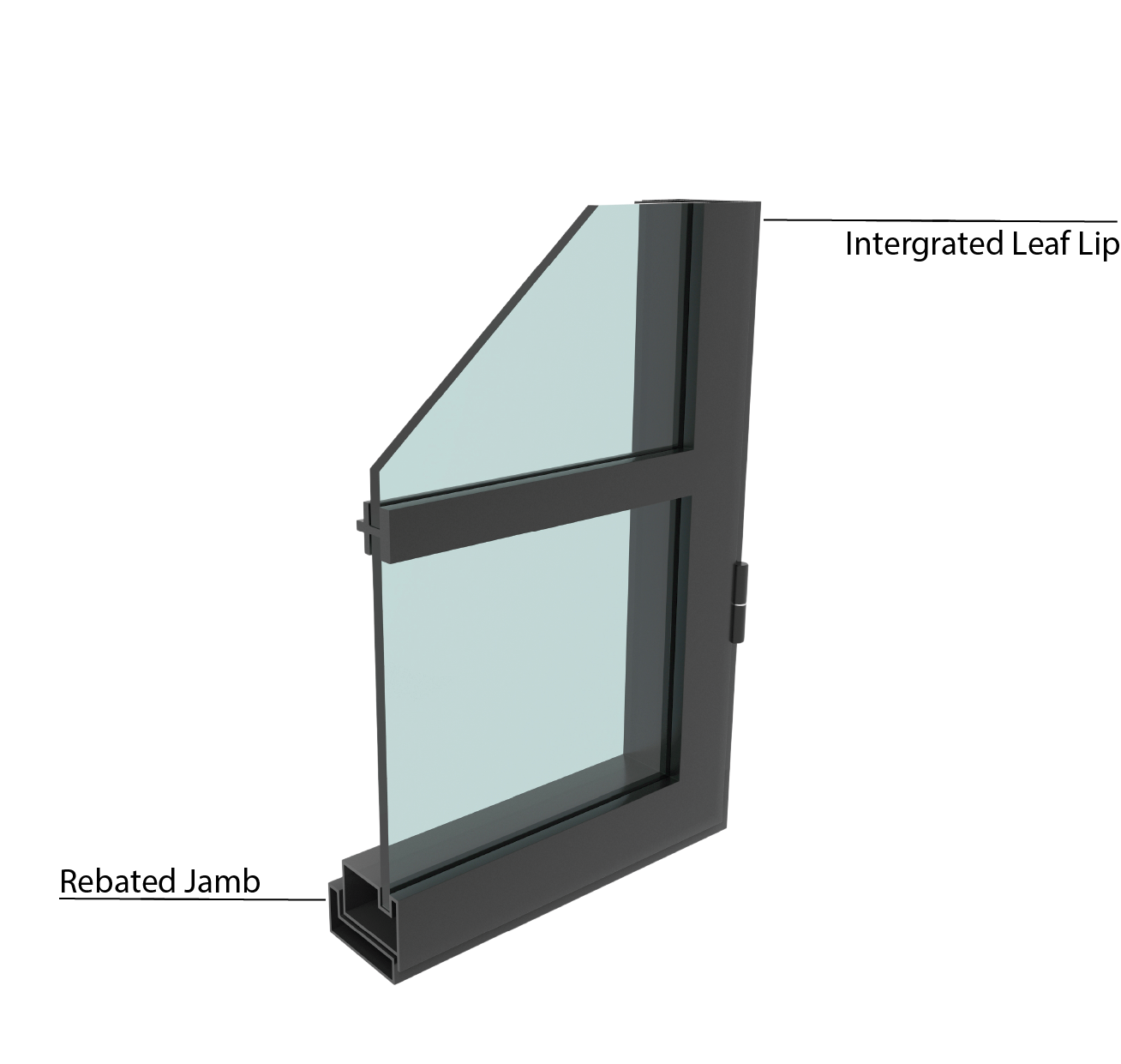

Both systems feature a rebated jamb. The Performance Series adds an integrated lip to the door leaf, providing an additional layer of protection against weather exposure.
Slimline
Performance
Head Profile Options
Within each series, the Square and Sloped Head profiles retain the same overall dimensions. The difference is purely visual, with all diagrams shown using 6mm glass.
Square Head - Flat Face
Clean, sharp and contemporary.
Sloped Head - Angled Detail
Subtle, detailed and refined.
Not sure which profile suits your project?
Send us your plans or opening dimensions and we’ll recommend the most appropriate system.
