Specifications / Profile systems / Artisan
Artisan Profile
Freedom in form.
Precision in the detail.
Artisan is the flexible, bespoke Steelos profile system. Greater freedom in configuration, proportion and specialised architectural applications allows the design to respond to the project. Steelos confirms the appropriate profile and technical details during design and quotation.
01 / Within Artisan
Details shaped by
the application.
The existing Slimline and Performance series sit within Artisan. Their documented jamb and leaf sections are shown below. Location, exposure and the required weather protection guide the detail. These are Artisan drawings; they do not describe Heritage.
Internal & sheltered external

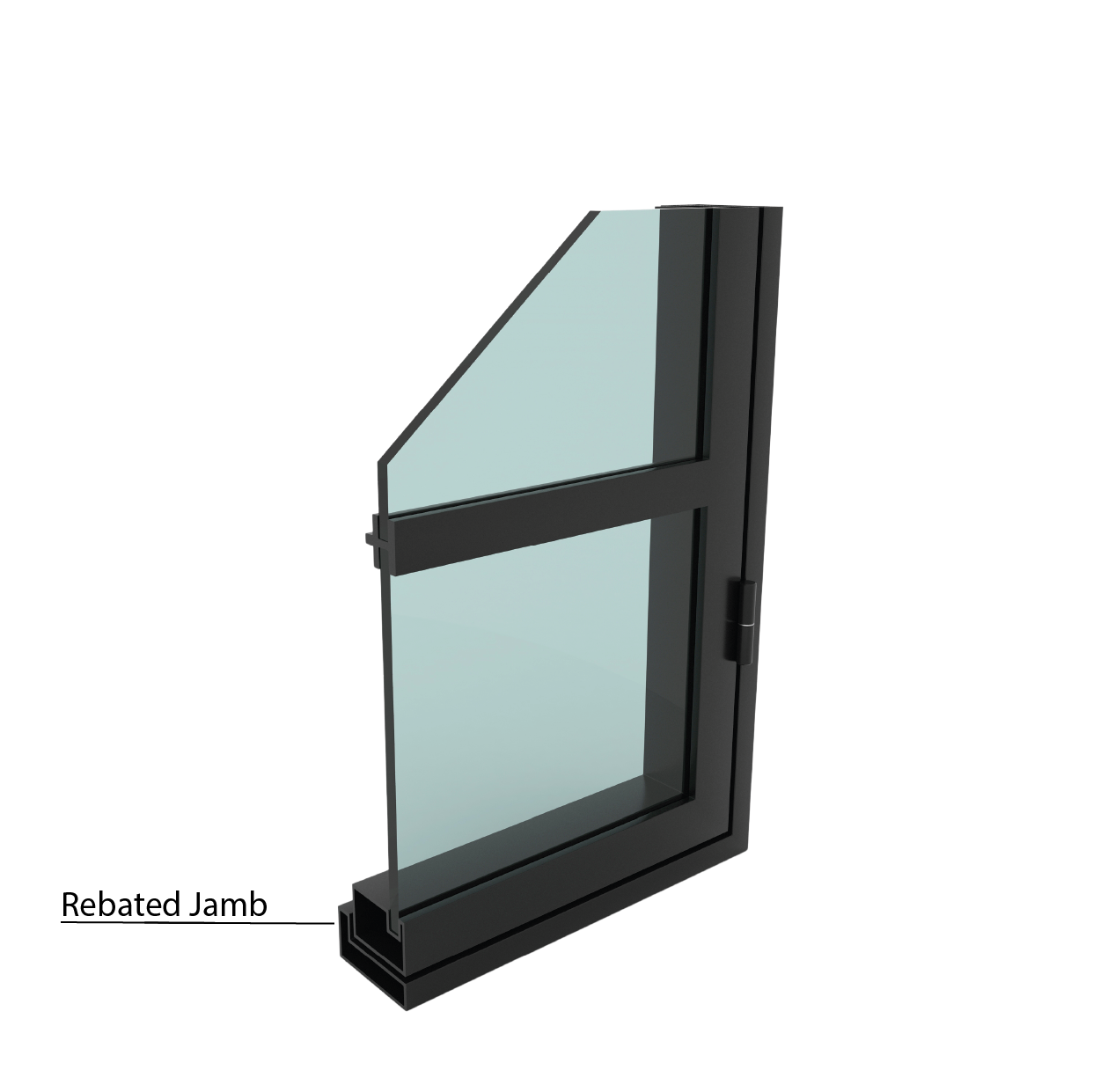

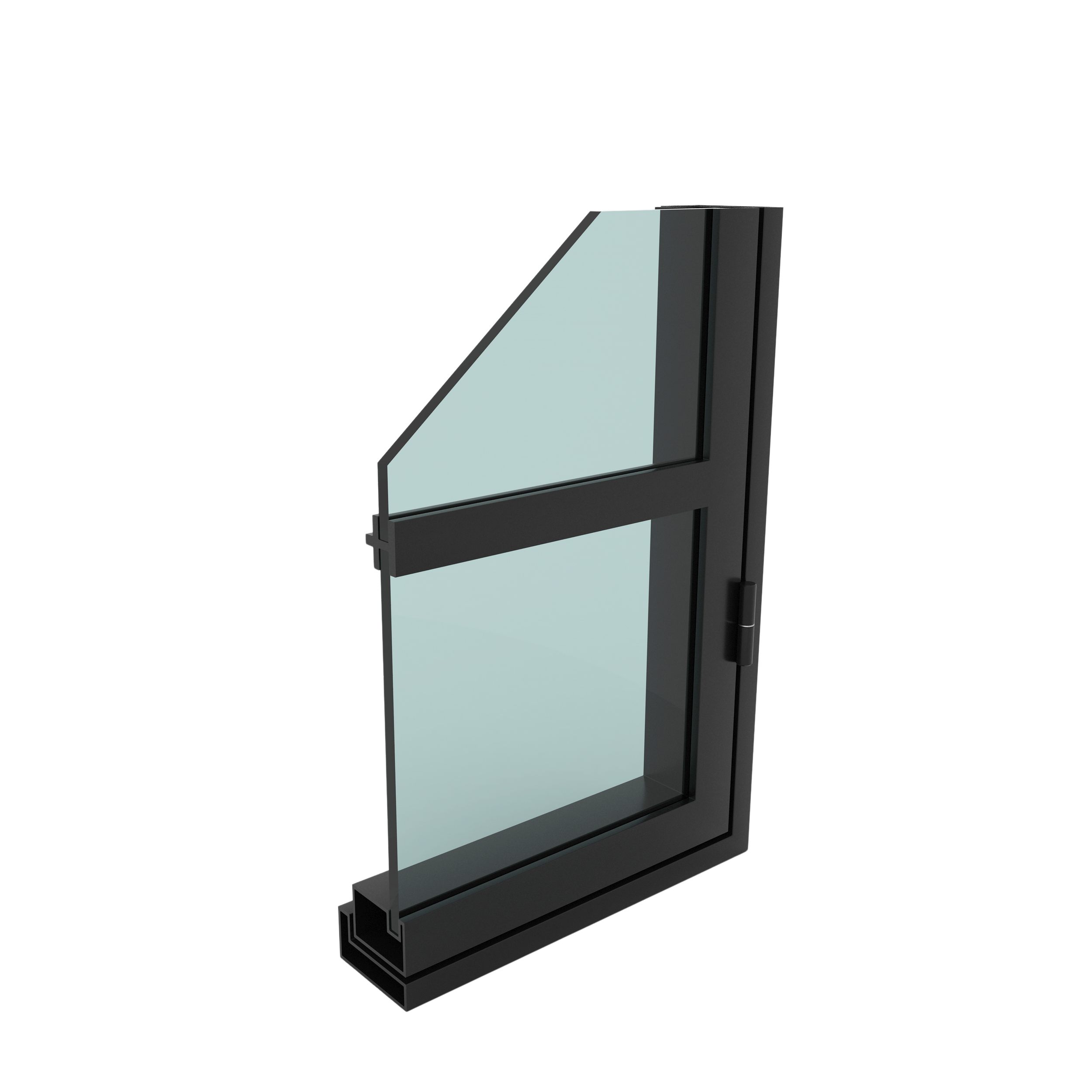

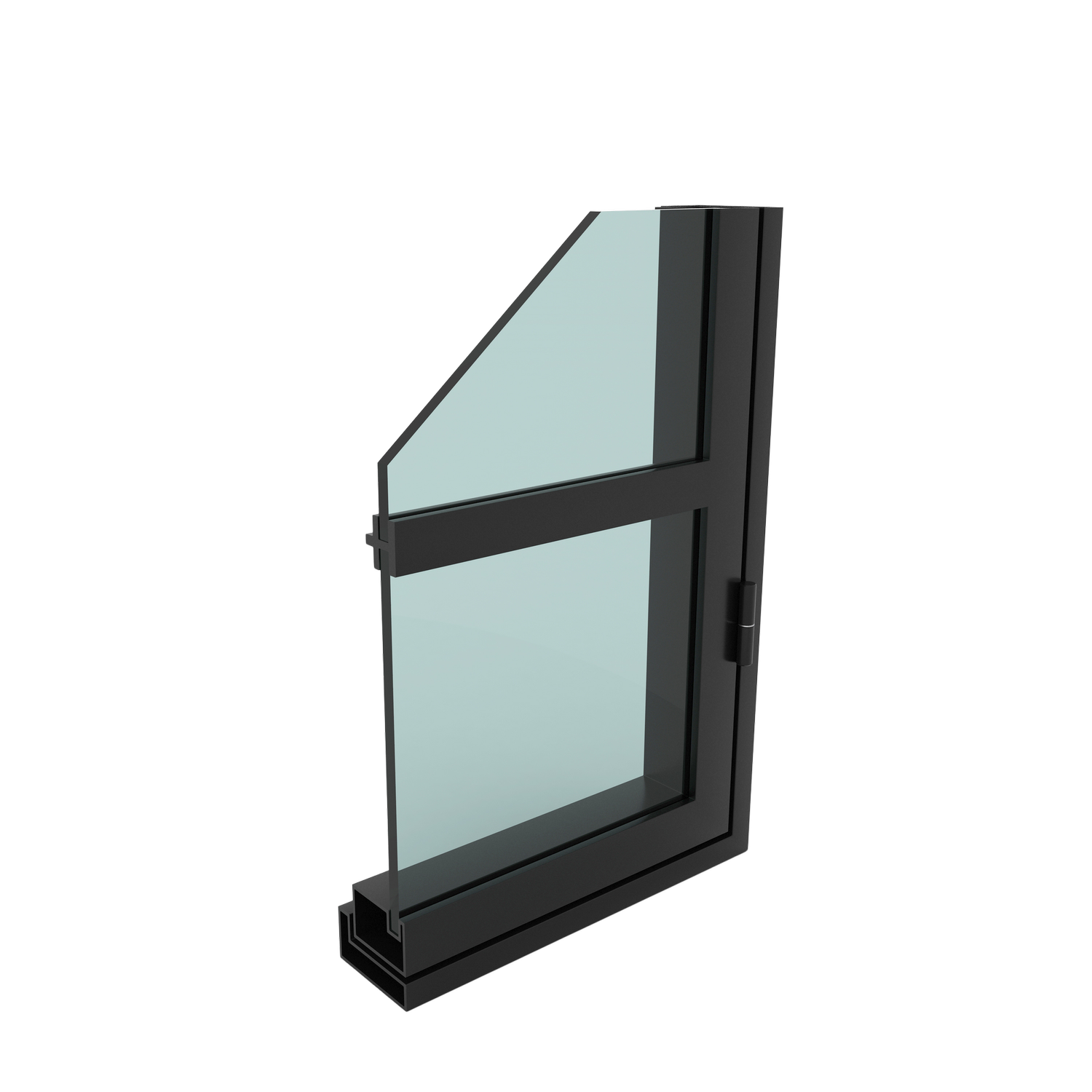

Slimline Series
Maximum glass. Minimal steel.
- Best suited to
- Internal and sheltered external applications
- Jamb size
- 20 mm × 50 mm
- Door leaf size
- 30 mm × 40 mm
- Head options
- Square or sloped
- Glazing illustrated
- 6 mm glass
Exposed external

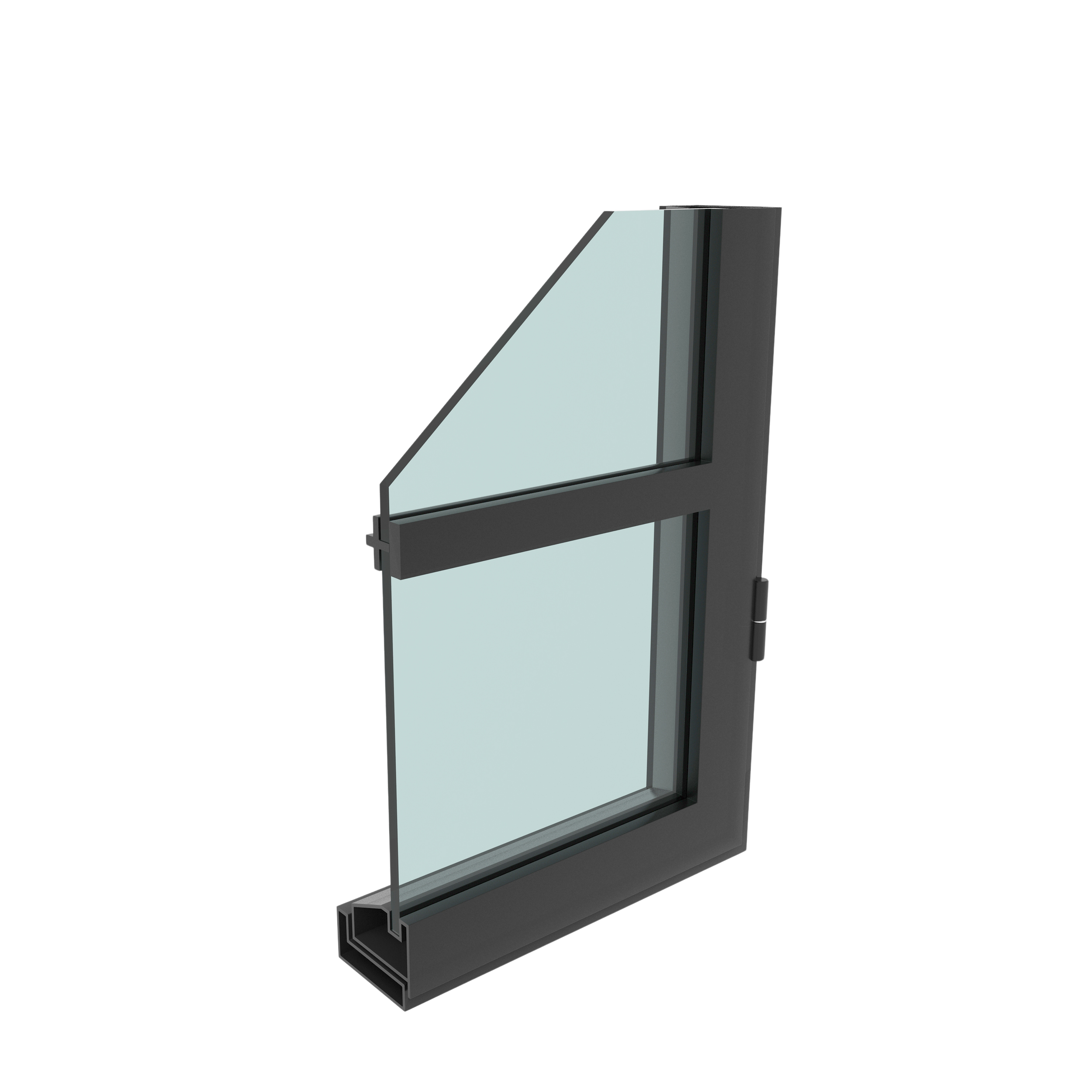

Performance Series
An integrated leaf lip for improved sealing.
- Best suited to
- Exposed external applications
- Jamb size
- 25 mm × 60 mm
- Door leaf size
- 34 mm × 46 mm
- Head options
- Square or sloped
- Glazing illustrated
- 6 mm glass
The drawings on this page illustrate profiles with 6 mm glass. Discuss the profile and glazing together for your project.
02 / The detail
A closer look
at the seal.

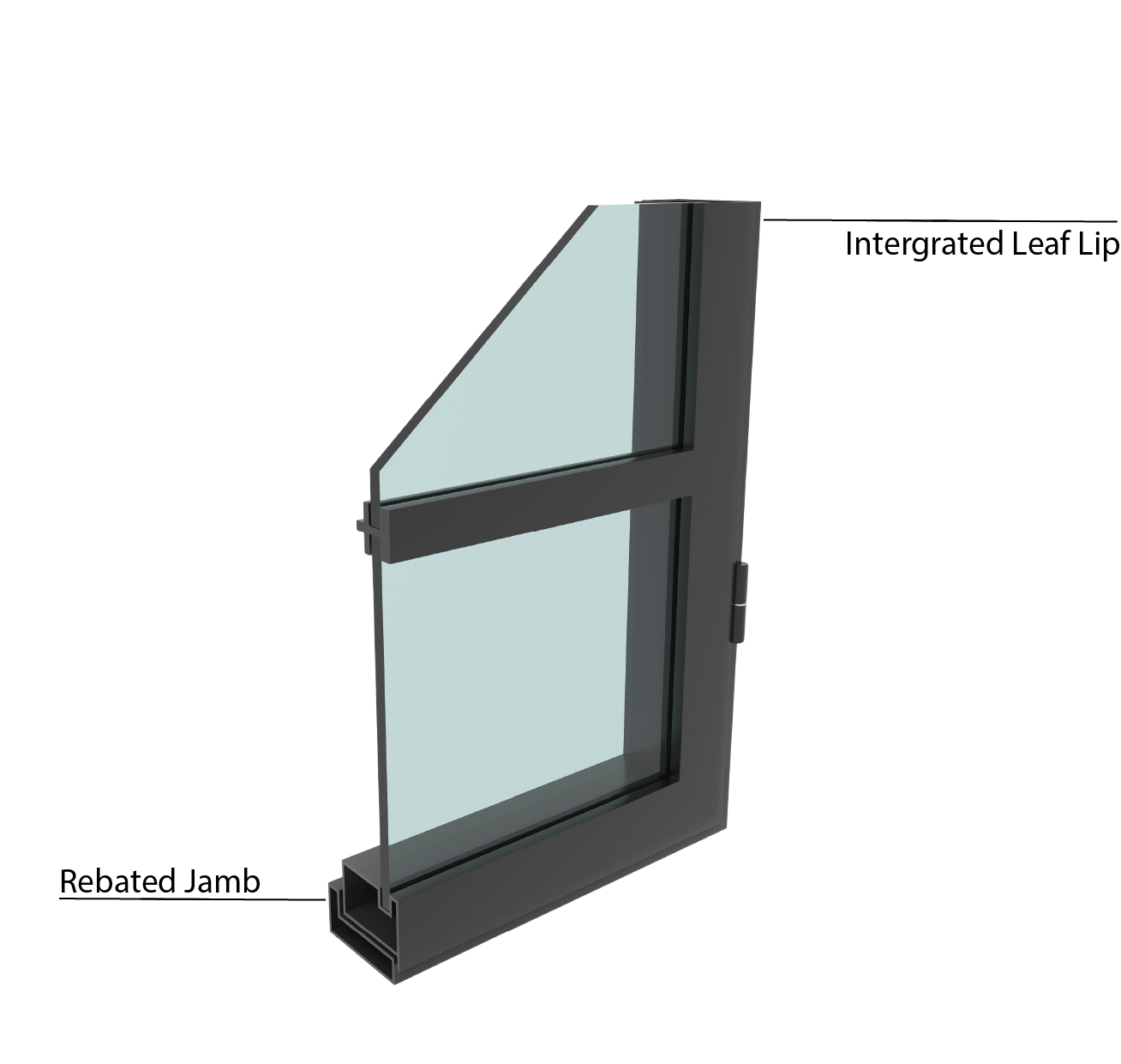

Both Artisan series feature a rebated jamb. The Performance Series adds an integrated lip to the door leaf, providing an additional layer of protection against weather exposure.
03 / Head options
Two expressions
within Artisan.

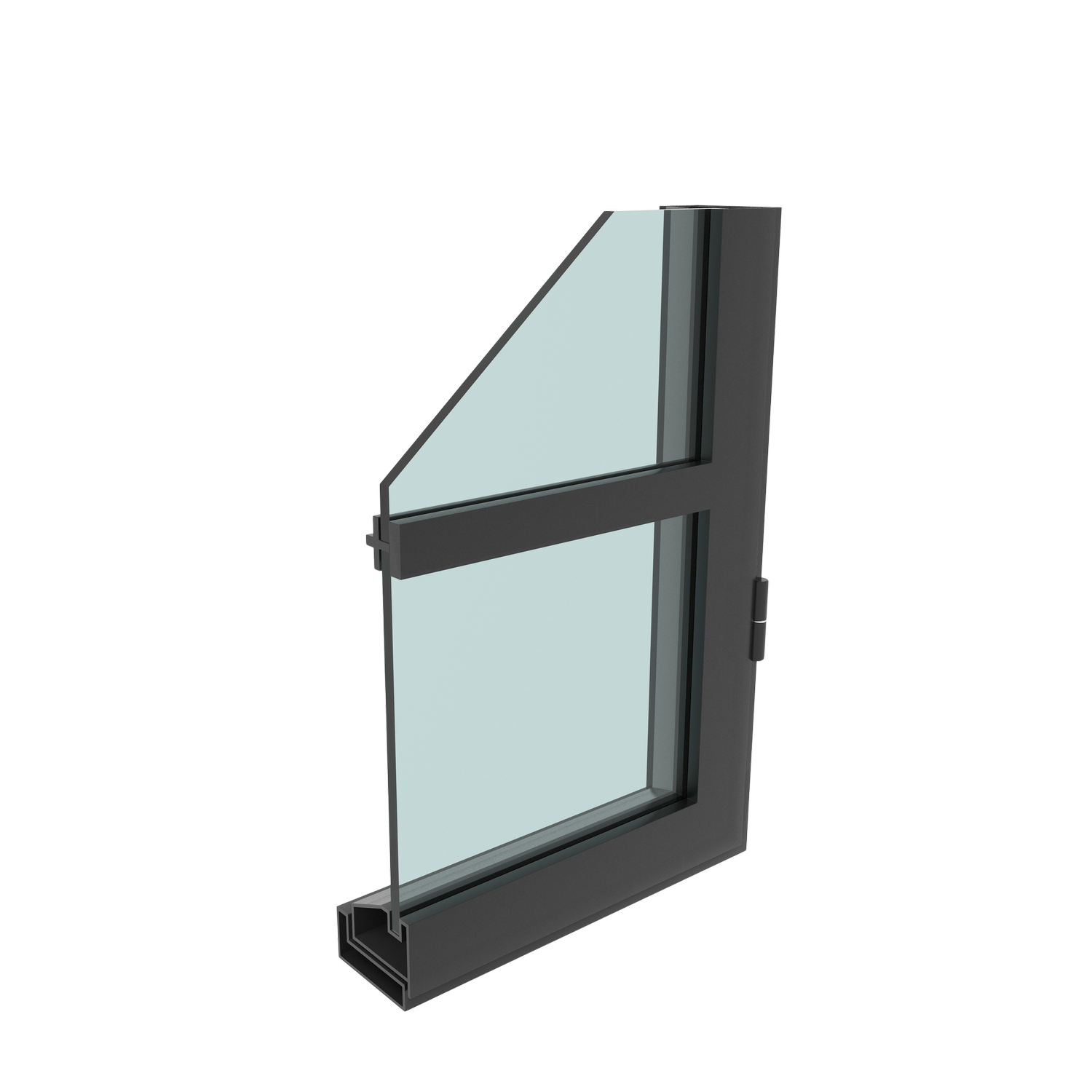

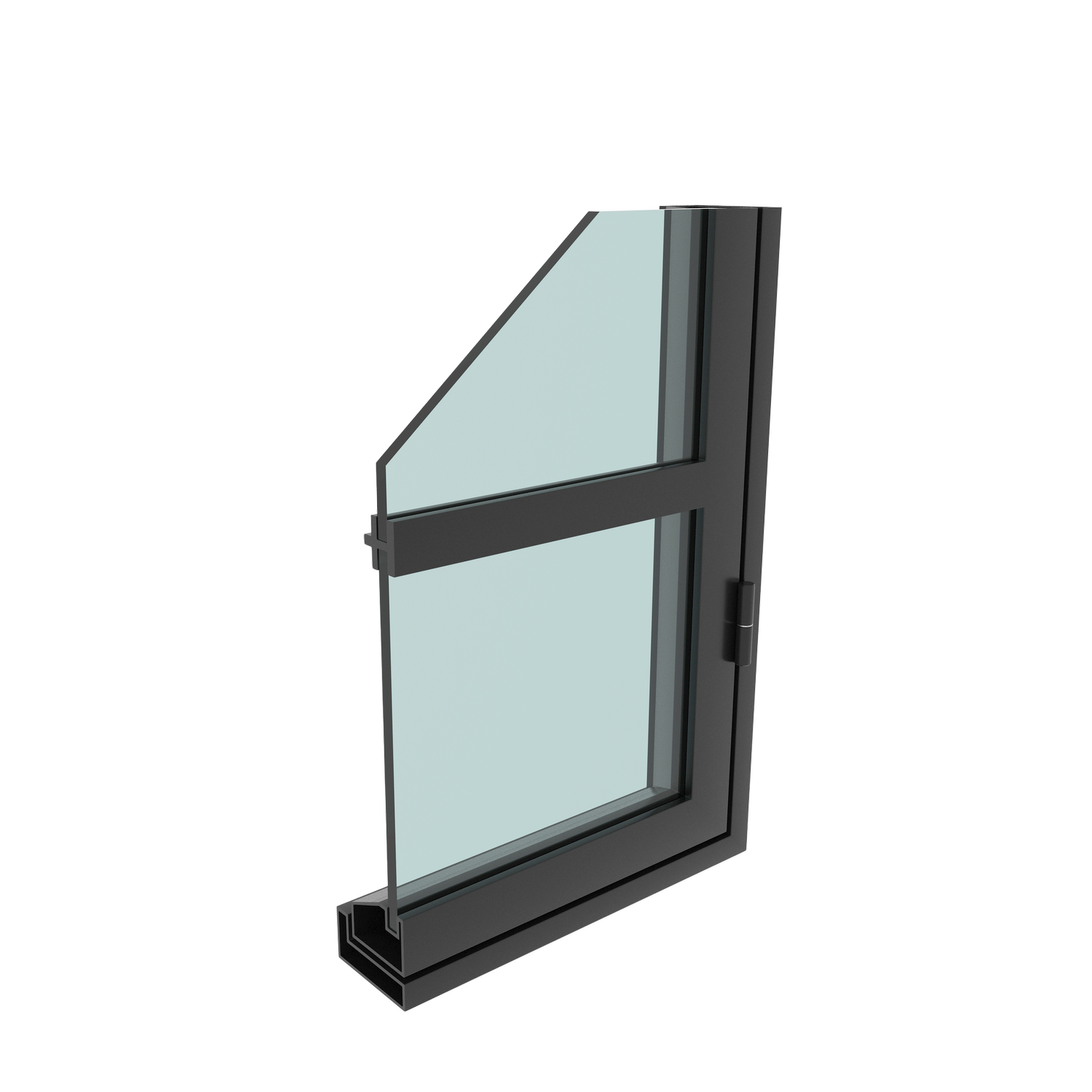

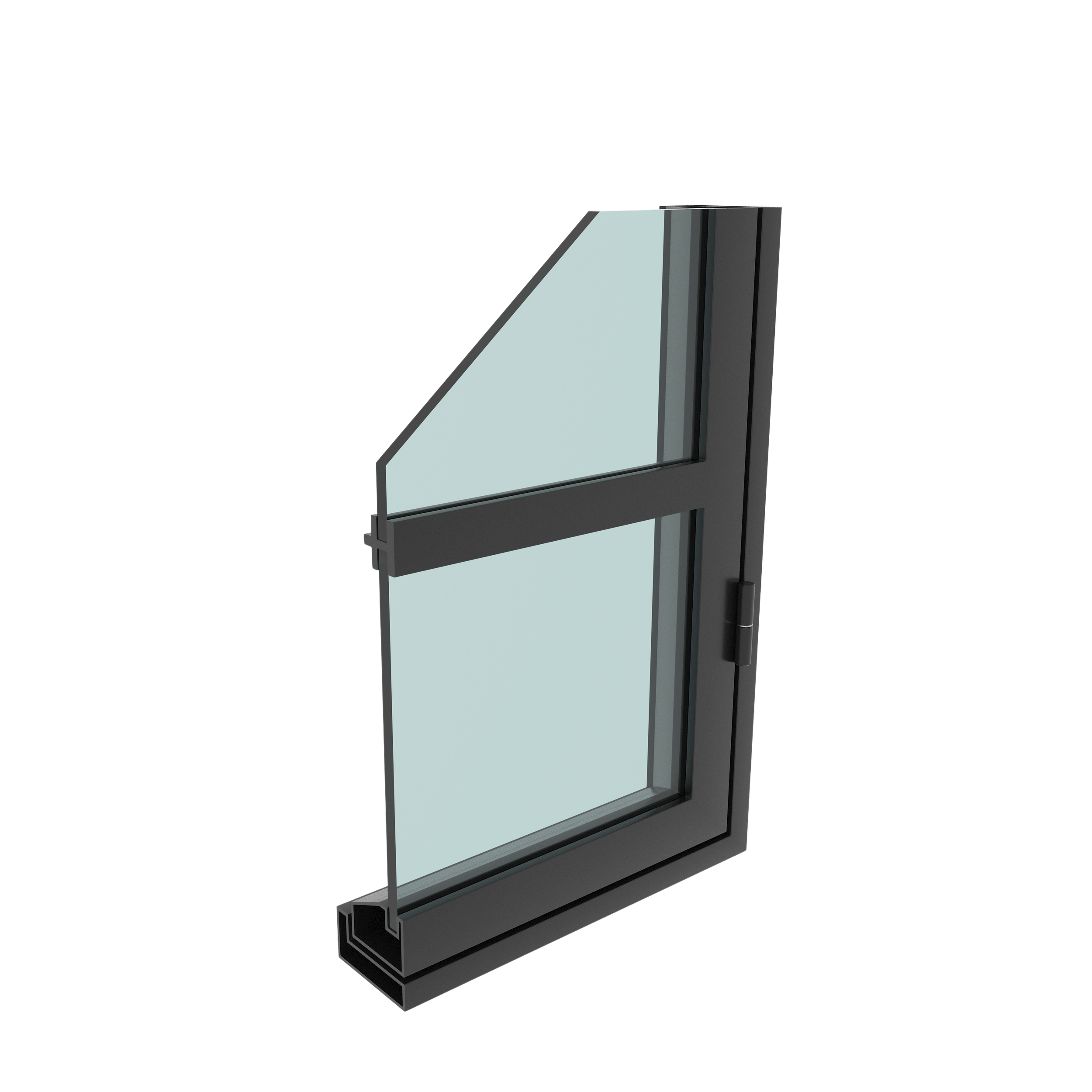

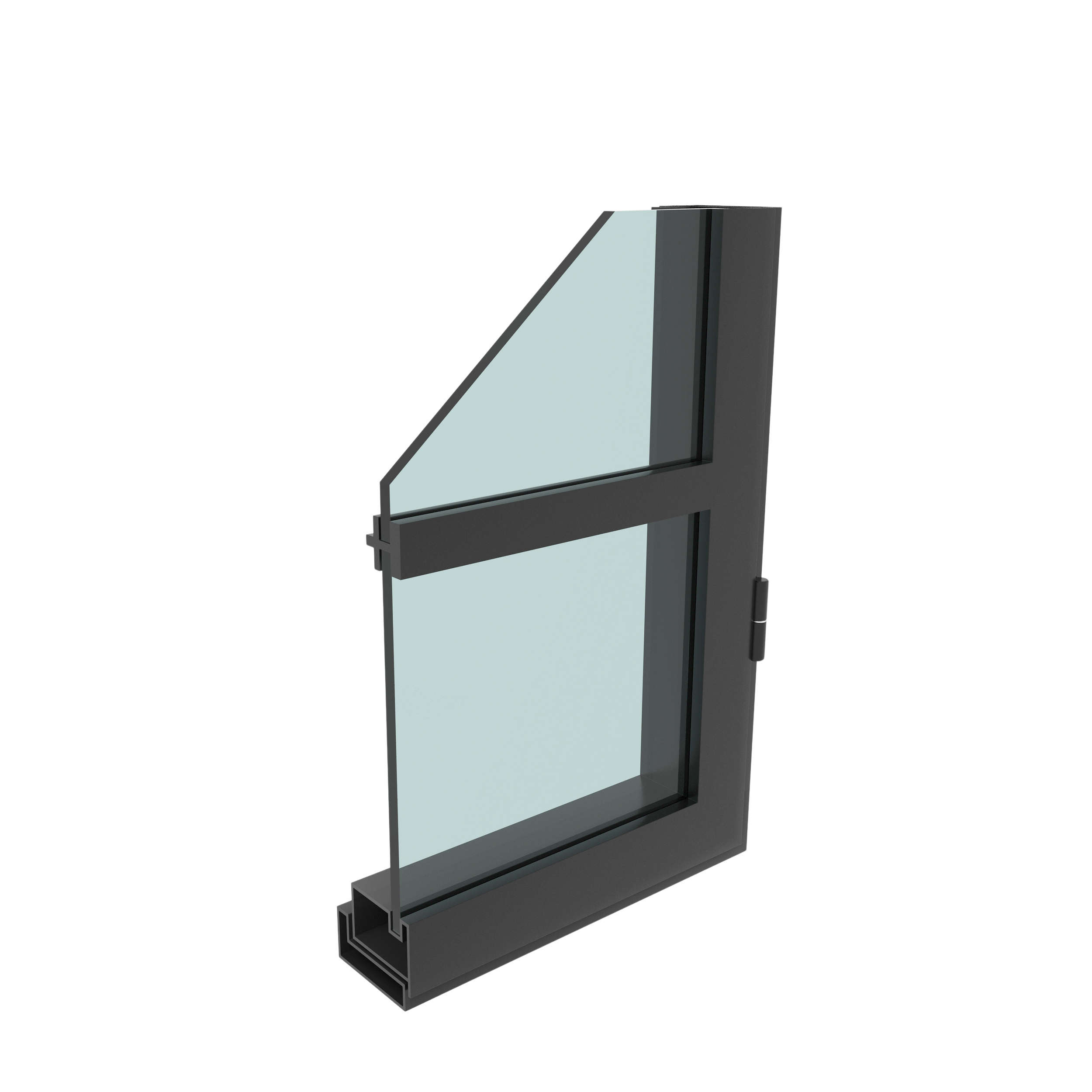

Square and sloped heads retain the same overall dimensions within each series. The distinction is visual: a flat face for a clean, sharp expression, or an angled detail for a more subtle finish.
