Details of Steel Products
Every detail should be yours. That’s the Steelos Steel difference
Mullion Bars define the shape and style of the internal steel bars within your door design. Positioned inside the glass panels, they play a key role in the door’s overall aesthetic — ranging from bold, industrial statements to sleek, minimal lines. You can choose from four distinct mullion bar styles, each offering a different visual character to suit your space. Our standard size for this is 25mm but other sizes can be done a request.
Mullion Bars:
Mullion style Range:

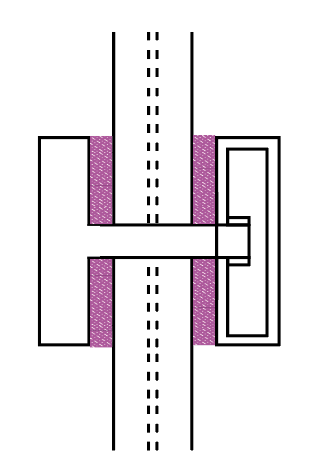

Split Line Bar
A subtle central groove that adds depth and shadow.

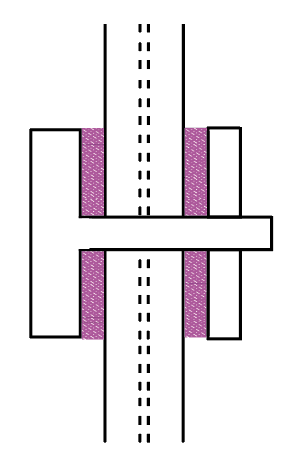

Modern Flat
A clean, squared-off profile with no detailing.

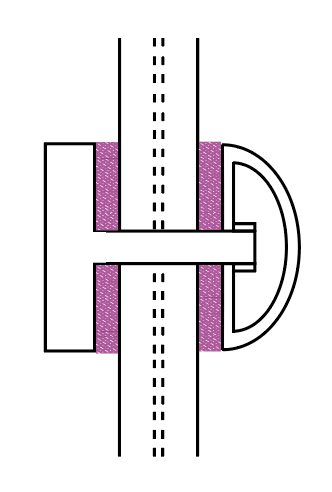

D-Bar
A curved smoothed surface with no detailing.

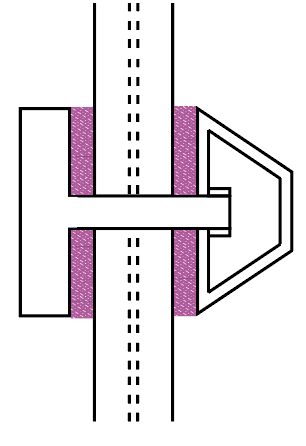

Diamond Edge
A clean, angular profile with a squared-off edge
Door Jambs:
Our jamb sizes range from 40 mm x 40 mm, 30 mm x 40 mm and 55mm x 65mm to tailor specific requirements. Custom jamb sizes can be provided to suit different construction methods and wall thicknesses upon request.
Mounting Points:
For installation, we offer two mounting options: external mounting tabs fixed to the outside of the jamb, or pre-drilled mounting holes concealed within the jamb
Threshold:
External doors are supplied with a steel weather-seal threshold, that is welded to the door jamb. Size is 25 mm x 150 mm. Internal doors do not include a threshold as standard; however, can be added on request if needed.

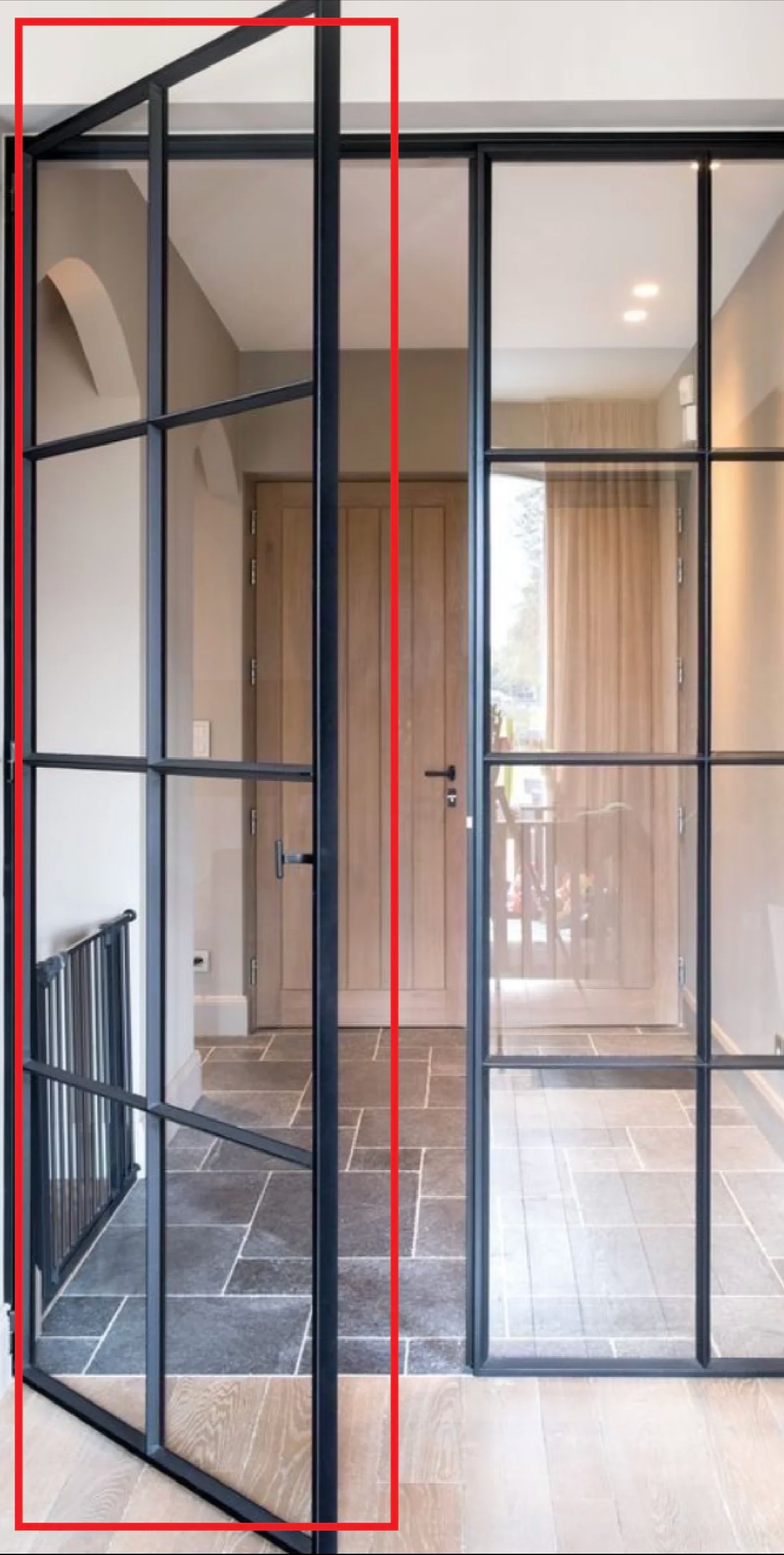

Door and Window Leafs:
Doors and windows have a standard leaf section size of 25 mm x 40 mm. This size is applied consistently across all door and window types to achieve clean sightlines, structural performance, and compatibility with a wide range of hardware. Section sizes may vary where required to suit specific design features.
Fabrication Method:

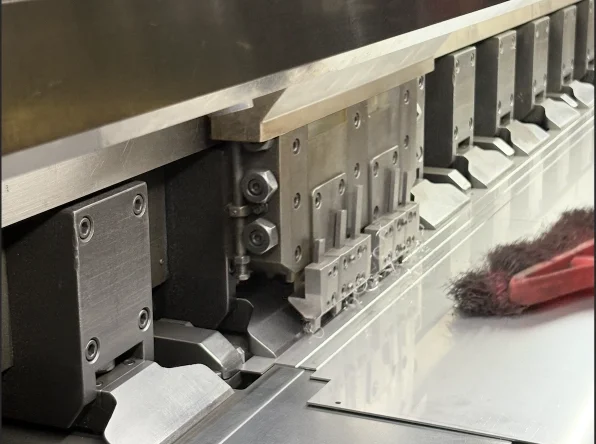

Our doors and windows are fabricated using a pinch fold method, formed on a CNC press brake to achieve precise, repeatable steel sections. The folded sections are welded, ground, and finished to produce clean, sharp profiles with no visible joins, resulting in a seamless, monolithic appearance. This fabrication approach allows greater control over sightlines, proportions, and tolerances, delivering consistent geometry across all systems and a refined architectural finish suited to modern detailing.
At Steelos Steel, we put your vision first. If you’re after something size-specific or outside our standard details, get in touch and we’ll work with you to bring your vision to life.
